Core density of laminate flooring is the mass per unit volume of the fiberboard substrate that forms the structural body of a laminate plank, expressed in kilograms per cubic meter (kg/m³). The core accounts for roughly 90% of a plank’s total thickness and carries 100% of its mechanical load, which makes density the single most predictive specification for how a laminate floor will perform under foot traffic, point loads, moisture exposure, and locking-system stress. A laminate plank’s wear layer determines how it looks after ten years; its core density determines whether it is still flat, joined, and structurally intact at that point.
Density is not a marketing number. It reflects how tightly wood fibers are packed and bonded inside the board, and it dictates three measurable properties: internal bond strength (the force in N/mm² required to pull the board apart through its thickness), modulus of rupture (resistance to bending failure), and 24-hour thickness swell (the percentage a board expands when submerged in water). All three improve as density rises, in a roughly linear relationship up to about 1,050 kg/m³, beyond which gains plateau and brittleness begins to appear.
This article covers what density physically represents inside a laminate core, how it is measured under EN 323, what the density profile across a board’s thickness reveals about its quality, the manufacturing variables that produce density, and the practical thresholds that separate residential-grade laminate from commercial-grade laminate.
What Core Density Physically Represents
A laminate core is a composite of refined wood fibers (60–85% of dry mass), thermosetting resin (8–14%), wax and additives (1–3%), and residual moisture (5–8%). Density measures how much of this mass is compressed into a given volume — and by extension, how little void space the board contains. A 700 kg/m³ MDF core has approximately 45% void volume between fibers; a 1,000 kg/m³ HDF core has under 30%. Voids are where moisture migrates, where impacts crush fibers without resistance, and where milled click-lock profiles crumble during installation.
The mechanical consequence is that density and internal bond strength correlate at roughly r = 0.85 across published manufacturer data. A core at 850 kg/m³ delivers an internal bond of about 0.8 N/mm², which is the EN 13329 minimum for laminate flooring. A core at 1,000 kg/m³ delivers 1.2–1.4 N/mm². The doubling of safety margin between these two density classes is why HDF outperforms MDF on every durability metric, not because the materials are chemically different — they are not — but because compression is greater.
How Core Density Is Measured
Core density is measured under EN 323 (Wood-based panels — Determination of density). The test method specifies cutting a 50 mm × 50 mm sample from the core, conditioning it at 20 °C and 65% relative humidity until mass stabilizes, then weighing it on a 0.01 g balance and dividing by measured volume. The reported value is the average density of the sample.
The complication is that “average density” hides the most important information about a laminate core: its density profile. A board pressed between heated platens does not cure uniformly. The two outer faces, in direct contact with the hot press, reach higher temperatures earlier and cure denser than the middle. This produces a U-shaped density curve across the board’s thickness — dense skins, lower-density core. A premium HDF board might show 1,100 kg/m³ at the surfaces and 850 kg/m³ at the midline, averaging to 950 kg/m³.
This profile matters because the click-lock joinery is milled into the board’s edge, cutting through the dense skin into the softer middle. A board with a steep density profile (large skin-to-core differential) has weak joint shoulders even if its average density looks acceptable. A board with a flatter, more uniform profile holds joints far better at the same average density. Manufacturers’ technical data sheets rarely publish the profile, which is why two laminates with identical 950 kg/m³ ratings can perform very differently in practice.

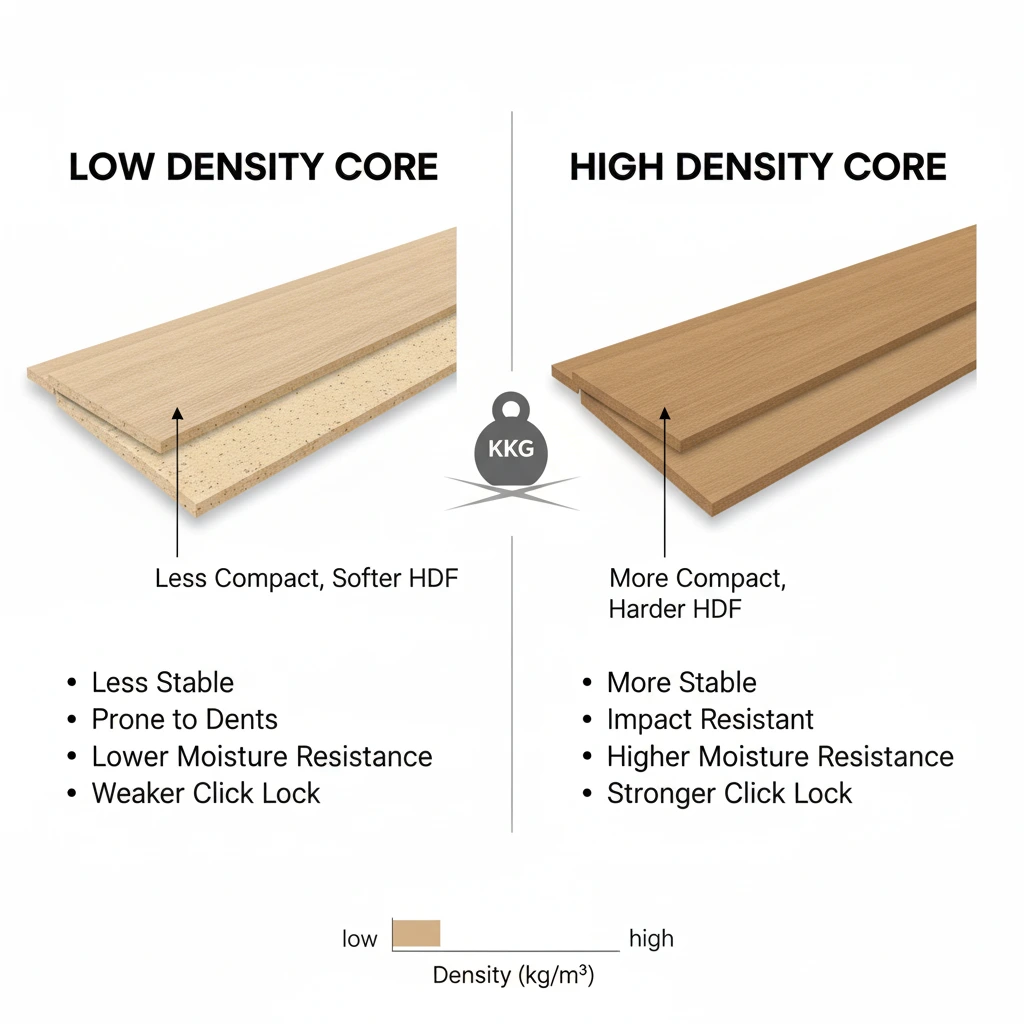

Density Ranges And What They Actually Mean
Three density tiers cover almost all laminate flooring on the market, and each tier has a specific failure mode at the bottom of its range.
MDF Cores: 600–800 kg/m³
At this density, fiber bonds are sparse and the board behaves like dense cardboard under stress. Internal bond strength sits at 0.4–0.6 N/mm², below the EN 13329 minimum. The 24-hour thickness swell exceeds 15%, meaning a 12 mm plank can swell to nearly 14 mm if standing water reaches its edge. Click joints chip during installation at a noticeable rate, and the board fractures rather than dents under point loads. MDF cores belong in furniture backing, not in flooring rated for foot traffic — but they appear in budget laminate priced under $1.00/sq ft, where the manufacturer is competing on shelf price rather than service life.
HDF Cores: 800–1,000 kg/m³
This is the structural threshold where laminate flooring becomes mechanically viable. At 850 kg/m³, internal bond reaches 0.8 N/mm² and 24-hour swell drops to roughly 12%. At 950 kg/m³, swell drops below 10% and click joints survive multiple disassembly-reassembly cycles without chipping. The difference between an 800 kg/m³ HDF and a 950 kg/m³ HDF is not visible on a showroom sample but is the difference between a floor that lasts 8 years and one that lasts 20.
EHDF Cores: 1,000–1,100 kg/m³
Extra-high-density cores are denser by design rather than by accident — they require longer press times, harder fiber sources (eucalyptus, beech), and refined fibers. Internal bond reaches 1.4 N/mm² and 24-hour swell falls below 8%. EHDF is the only core type that can support AC5 and AC6 wear ratings without the substrate failing before the wear layer does. Above 1,100 kg/m³, brittleness appears: the board becomes hard but loses some of its impact-energy absorption, which is why density does not keep climbing indefinitely in commercial products.
Manufacturing Variables That Produce Density
Density is the output of a controlled industrial process, not a property of the wood itself. Five variables determine the final number on the data sheet.
Fiber source and refinement. Hardwood fibers (oak, beech, eucalyptus) have higher base density and shorter, finer particles after refinement than softwood fibers (pine, spruce). Finer fibers pack more tightly. A core made from 70% hardwood fines reaches 1,000 kg/m³ at the same press settings that yield 850 kg/m³ from softwood-dominant feedstock.
Resin volume and chemistry. Resin fills voids between fibers and creates the bonds that hold the board together under load. Increasing resin from 8% to 12% raises density by roughly 40–60 kg/m³ and lifts internal bond strength proportionally. Melamine-urea-formaldehyde (MUF) resins outperform plain urea-formaldehyde at the same loading because they cure into a harder, more moisture-resistant matrix.
Press pressure and temperature. The press is where density is physically created. Pressing at 45–50 bar and 210–220 °C compresses the fiber mat further and cures the resin faster than pressing at 30 bar and 180 °C, producing density gains of 10–15% from the same raw material. Press time matters as much as pressure: 5–6 minutes at temperature versus 3–4 minutes is the difference between a fully consolidated core and a partially-cured one with internal voids.
Moisture content of the fiber mat at pressing. Optimal pre-press moisture is 8–11%. Below this, fibers do not plasticize enough to deform and bond; above it, steam pressure builds inside the press and creates internal blisters that show up as low-density pockets in the finished board.
Wax and hydrophobic additives. Wax at 0.5–1.5% adds mass and, more importantly, coats fiber surfaces so that water cannot wick along them. This is why two boards at the same 950 kg/m³ density can have very different swell numbers — the one with wax-treated fibers swells half as much.
Density And Click-Lock Joint Performance
The click-lock or tongue-and-groove profile is milled directly into the core’s edge, which means joint strength is a function of core density at the milling site. The dense outer skins of the board form the load-bearing shoulders of the joint; the lower-density middle forms the inner mating surfaces. A board with weak skins produces joints that chip during installation, gap during seasonal expansion, or fail outright under foot traffic.
Joint failure shows up in two ways. The first is visible during install, when the locking edge crumbles as the plank is angled in — this is almost always a density problem at the skin. The second appears months or years after install, when joints separate under normal expansion and contraction. If a floor was installed correctly with proper expansion gaps and the planks still pull apart, the cause is usually low core density rather than installation error. The diagnostic tree for this is covered in why your laminate flooring won’t click together.
Density And Moisture Behavior
Water enters a laminate plank through three pathways: the joint seams, the unsealed bottom surface, and any damaged area of the wear layer. Once inside, water migrates through the void network between fibers. Density determines the size and connectivity of those voids. At 700 kg/m³, voids are large and continuous, and water reaches the full thickness of the core within hours. At 1,000 kg/m³, voids are smaller and more isolated, and water migrates an order of magnitude more slowly.
The board responds to water by swelling — fibers absorb moisture, expand individually, and push against neighboring fibers. The total swell is constrained by the resin matrix and by the fiber-coating waxes. EN 13329 caps acceptable 24-hour swell at 18% for laminate flooring, but premium HDF products achieve 6–10%, and water-resistant cores with hydrophobic treatment achieve 3–5%. Once a core swells past 12%, the deformation is permanent: fibers crush against each other, resin bonds break, and the board does not return to its original thickness when it dries.
This is why a low-density core in a kitchen or bathroom installation fails even when the visible water exposure is minor. Vapor migrating up from a concrete subfloor, or condensation from temperature differentials, is enough to push a 750 kg/m³ core past its swell threshold over a year or two. The same conditions are tolerated by a 1,000 kg/m³ core for the lifetime of the floor.
How To Read Core Density On A Product Sheet
Most retail laminate packaging does not list core density. The information lives one layer deeper, in the technical data sheet (TDS) that manufacturers publish for each product line. Five values on the TDS together describe core quality:
- Density (kg/m³) — the headline number. Anything below 850 should be excluded for residential flooring; below 1,000 for commercial.
- Internal bond strength (N/mm²) — the structural confirmation of density. Should exceed 0.8 for residential, 1.0 for commercial.
- 24-hour thickness swell (%) — the moisture confirmation. Below 12% for residential, below 8% for water-prone areas.
- Surface soundness (N/mm²) — measures whether the dense skin can hold the wear layer under stress. Should exceed 1.0.
- EN 13329 conformity — confirms the product was tested as a system and meets the minimum thresholds across all four metrics above.
If a TDS publishes density but not internal bond, treat the density figure with skepticism — those two numbers are usually published together, and the absence of internal bond often indicates a manufacturer who measured average density without verifying that the structure actually performs.
Density And Plank Thickness Are Independent
Thickness and density are often confused because both are sold as proxies for “quality.” They are not the same property and they can move in opposite directions. A 12 mm plank with an 800 kg/m³ core contains 9.6 kg of substrate per square meter. An 8 mm plank with a 1,050 kg/m³ core contains 8.4 kg per square meter — only 12% less mass, with substantially higher internal bond strength and lower swell. The thinner, denser plank will outperform the thicker, lighter one on every durability metric except acoustic dampening, where extra mass at any density helps.
The correct way to compare two laminate products is to multiply density by thickness to get areal mass (kg/m²), then check internal bond strength as the structural confirmation. Thickness alone is meaningless without density behind it, which is why a 12 mm budget laminate can fail before an 8 mm premium one. Detailed thickness selection is covered in the best thickness for laminate flooring guide.
The Practical Thresholds
Three density numbers matter for purchasing decisions:
850 kg/m³ is the residential minimum. Below this, internal bond falls under EN 13329 specification and the floor will not deliver the 15–20 year lifespan that the category is rated for. Anything sold as laminate at this density or below is competing on price, not service.
950 kg/m³ is the residential sweet spot. Internal bond comfortably clears 1.0 N/mm², 24-hour swell is under 10%, and click joints survive both installation and seasonal cycling. This is where most quality residential laminate sits and where price-to-performance is best.
1,000 kg/m³ is the commercial floor. Below this, no laminate should be specified for retail spaces, offices, or any environment with rolling loads (chairs on casters, carts, foot traffic exceeding 1,000 person-hours per square meter per year). Above this, the floor handles AC5 wear ratings and lasts 25–30 years under commercial use. The load capacity numbers that flow from these density thresholds are detailed in the laminate flooring load-bearing capacity reference.
Why Density Is Underspecified In The Market
Laminate flooring is sold to homeowners primarily on aesthetics — wood-look pattern, plank width, edge bevel — and secondarily on AC rating and thickness. Density rarely appears in retail-facing material because it is harder to explain and because publishing a low number invites comparison. The result is that two products at the same price point and same AC rating can have core densities 200 kg/m³ apart, with predictable consequences for which one is still flat and joined a decade later.
The buyer’s defense is to ask for the technical data sheet before purchase, confirm density and internal bond strength against the thresholds above, and walk away from any product where the manufacturer cannot or will not produce those numbers. A manufacturer confident in their core publishes the data; one that is not, does not.
