Laminate flooring is a multi-layer synthetic flooring product that consists of four bonded layers: a wear layer, a design layer, a core layer, and a backing layer. Each layer has a defined thickness, a specific material composition, and a distinct function within the board structure. Together, these four layers determine the durability rating, moisture resistance, dimensional stability, and visual realism of the finished floor.
Understanding the four layers of laminate flooring is essential for evaluating product quality. The thickness of the core, the abrasion class of the wear layer, the print resolution of the design layer, and the composition of the backing layer are the four primary attributes that separate a residential-grade laminate from a commercial-grade laminate. This article defines each layer, explains how the layers function as a system, and outlines the quality indicators that homeowners and contractors should verify before purchase.

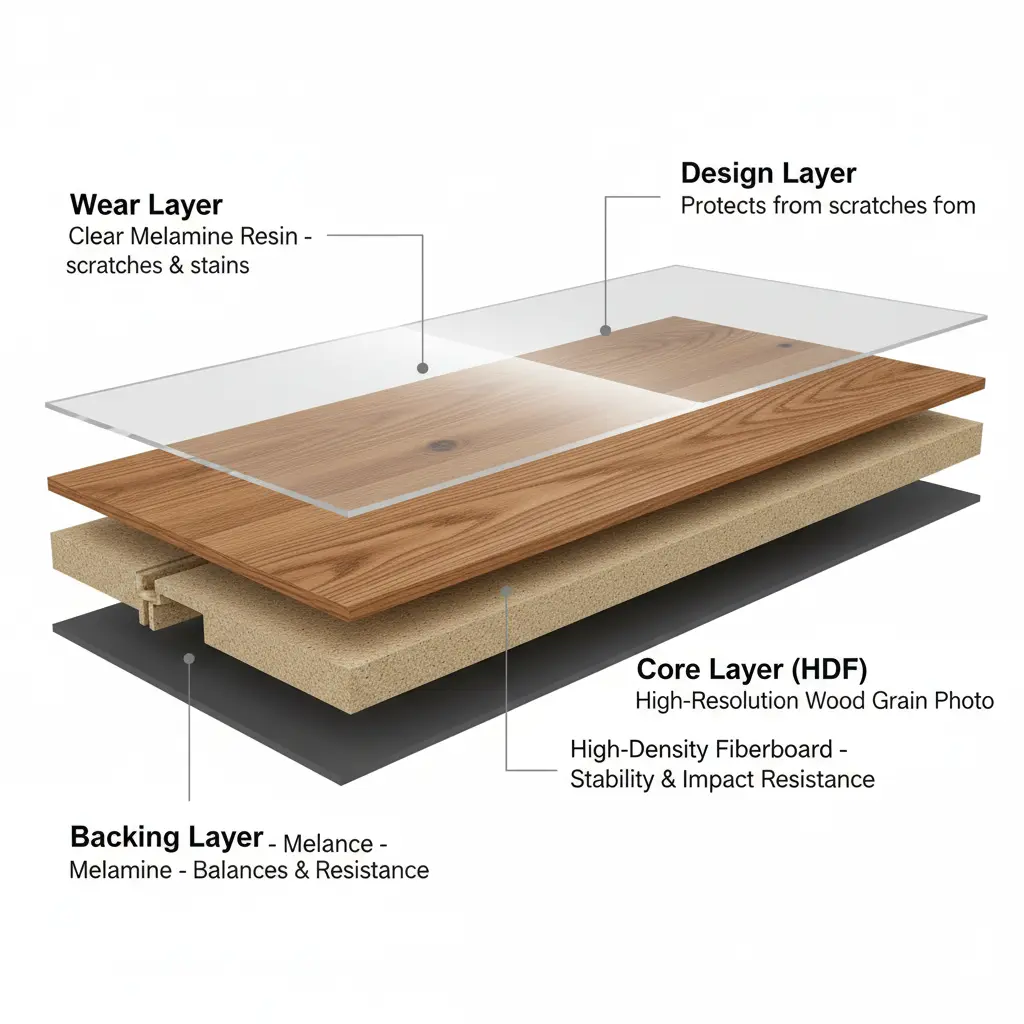

What Are the Four Layers of Laminate Flooring?
The four layers of laminate flooring are the wear layer, the design layer, the core layer, and the backing layer. The wear layer is the topmost layer and provides surface protection. The design layer sits directly beneath the wear layer and provides the visual pattern. The core layer forms the structural body of the board. The backing layer is the bottom layer and provides moisture resistance and dimensional stability. The four layers are fused under high heat and pressure through a process called direct pressure lamination (DPL) or high pressure lamination (HPL).
Layer 1: The Wear Layer
The wear layer is a transparent protective coating made from aluminum oxide, melamine resin, or a combination of both. The wear layer thickness ranges from 0.2 millimeters to 0.6 millimeters. The wear layer protects the design layer from scratches, stains, fading, and surface abrasion.
The durability of the wear layer is measured by the Abrasion Class (AC) rating. The full AC rating scale ranges from AC1 to AC5. AC1 is rated for moderate residential use such as bedrooms. AC2 is rated for general residential use such as living rooms. AC3 is rated for heavy residential and light commercial use. AC4 is rated for general commercial use, and AC5 is rated for heavy commercial use such as retail spaces and public buildings. The aluminum oxide content directly affects the AC rating, with higher concentrations producing higher abrasion resistance.
Layer 2: The Design Layer
The design layer is a high-resolution printed image that gives laminate flooring its visual appearance. The design layer is printed on decorative paper using advanced photographic techniques. The design layer thickness is typically less than 0.5 millimeters.
The design layer can replicate hardwood species such as oak, maple, hickory, and walnut. The design layer can also replicate stone surfaces such as marble, slate, and travertine, along with ceramic tile patterns and abstract modern textures. The print resolution determines the realism of the visual, with premium products using high-definition printing combined with embossed-in-register (EIR) texturing to align surface texture with the printed grain pattern.
Layer 3: The Core Layer
The core layer is the structural body of the laminate board. The core layer is manufactured from high-density fiberboard (HDF) or medium-density fiberboard (MDF). The core layer thickness ranges from 6 millimeters to 12 millimeters. HDF is the preferred core material because HDF has a density above 800 kilograms per cubic meter, which provides higher impact resistance and indentation resistance than MDF. The role of density in laminate performance is examined in detail in our guide to the core density of laminate flooring, and the question of whether MDF qualifies as a laminate floor is addressed separately.
The core layer also contains the locking mechanism. The two primary locking systems are click-lock or tongue-and-groove. Click-lock systems allow boards to be installed without glue or nails through a mechanical drop-and-lock or angle-and-tap method. Tongue-and-groove systems require adhesive at the joints. The core layer in moisture-resistant laminate is treated with wax or resin to reduce water absorption, which improves performance in kitchens, bathrooms, and entryways.
Layer 4: The Backing Layer
The backing layer is the bottom layer of laminate flooring. The backing layer is also called the stabilizing layer or the balancing layer. The backing layer is manufactured from melamine-impregnated paper or a similar resin-treated material. The backing layer thickness ranges from 1 millimeter to 2 millimeters.
The backing layer prevents moisture from the subfloor from reaching the core. The backing layer also balances the tension between the upper layers, which prevents the board from warping, cupping, or bowing. Premium laminate products include a pre-attached underlayment on the backing layer. The pre-attached underlayment adds soundproofing, thermal insulation, and walking comfort, and removes the need to install a separate underlayment during installation.
How the Four Layers Function as a System
The four layers of laminate flooring function as an integrated structural system. Each layer depends on the layers above and below it to deliver the final performance of the floor. The wear layer protects the design layer from physical damage. The design layer relies on the core layer for dimensional support. The core layer relies on the backing layer for moisture protection. The backing layer counterbalances the tension created by the wear layer on the opposite side of the board.
The total thickness of a finished laminate board ranges from 7 millimeters to 12 millimeters. The total thickness directly affects three performance attributes: acoustic performance, indentation resistance, and underfoot feel. A 12-millimeter laminate board absorbs more sound, resists more impact, and feels more substantial than a 7-millimeter board. The thickness of the core layer is the largest contributor to total board thickness and the strongest predictor of long-term durability. A complete breakdown of thickness selection by use case is available in our guide to the best thickness for laminate flooring.
Quality Indicators for Selecting Laminate Flooring
The quality of laminate flooring is measured by five primary indicators: board thickness, AC rating, core composition, moisture resistance, and warranty length. Each indicator corresponds to a measurable attribute of one or more of the four layers.
Board Thickness
Board thickness is the total measurement of all four layers combined. Board thickness ranges from 7 millimeters to 12 millimeters in residential laminate products. A board thickness of 8 millimeters is the minimum recommended for general residential use. A board thickness of 10 to 12 millimeters is recommended for high-traffic areas, commercial use, and applications where acoustic performance is a priority.
Abrasion Class (AC) Rating
The AC rating measures the durability of the wear layer. AC3 is the recommended minimum for most residential applications. AC4 and AC5 ratings are recommended for high-traffic residential areas, light commercial spaces, and commercial spaces. The AC rating is established through standardized abrasion testing under EN 13329 and is printed on most product packaging.
Core Composition and Density
Core composition determines the structural performance of the floor. HDF cores with densities above 850 kilograms per cubic meter offer the highest indentation resistance and dimensional stability. Moisture-resistant HDF cores treated with wax or resin offer improved performance in moisture-prone areas. MDF cores are acceptable for low-traffic, dry environments but are less durable than HDF cores.
Moisture Resistance
Moisture resistance is determined by the core treatment, the locking system, and the backing layer composition. Standard laminate is moisture-resistant but not waterproof. Water-resistant laminate features sealed locking systems and treated cores that withstand surface moisture for 24 to 72 hours. Waterproof laminate features fully sealed core and locking systems that withstand prolonged water exposure and are suitable for kitchens, bathrooms, and laundry rooms.
Warranty Length
Warranty length is a manufacturer-issued indicator of expected product lifespan. Residential laminate warranties range from 10 years to lifetime coverage. Commercial laminate warranties range from 5 years to 20 years. A longer warranty correlates with higher AC rating, thicker core, and superior moisture resistance, and reflects manufacturer confidence in the product’s durability.
Installation Features Tied to the Four-Layer Structure
The four-layer structure of laminate flooring directly enables modern installation methods. The click-lock mechanism is machined into the core layer and allows floating floor installation without adhesives or fasteners. The pre-attached underlayment on the backing layer removes the need for separate underlayment material. These features reduce installation time, lower labor costs, and make laminate flooring suitable for do-it-yourself installation by homeowners. The complete installation process from subfloor preparation to final transitions is documented in our guide on how to install laminate flooring.
Conclusion
The four layers of laminate flooring — wear layer, design layer, core layer, and backing layer — define the performance, appearance, and durability of the product. The wear layer determines surface durability through its AC rating. The design layer determines visual realism through its print resolution and embossing. The core layer determines structural performance through its thickness and density. The backing layer determines moisture resistance and dimensional stability. Evaluating each layer against its measurable attributes — thickness, density, AC rating, moisture treatment, and warranty — is the most reliable method for selecting a laminate flooring product that matches the demands of the installation environment.
