Installing underfloor heating under laminate flooring is the process of placing an electric or hydronic radiant heat source between the subfloor and a floating laminate floor, separated by an insulation board, a low-tog underlay, and a floor temperature sensor. The installation succeeds when the laminate surface temperature stays below 27°C, the underlay total thermal resistance stays below 0.15 m²K/W, and the system is pressure-tested or resistance-tested before the planks go down.
Laminate behaves well over radiant heat because it is a dimensionally engineered floating floor, but it is also a heat-sensitive composite. That double nature is why every step of the install — from subfloor moisture readings to the final 5°C-per-day commissioning ramp — has a fixed rule attached to it. This guide walks through each rule in order, tied to the system type you are working with.
What Is Underfloor Heating Under Laminate Flooring?
Underfloor heating under laminate is a radiant heating layer installed beneath floating laminate planks that warms the room from the floor surface upward. The two compatible system types are electric (dry) heating mats and hydronic (wet) PEX pipework. Both systems require a low-thermal-resistance underlay and a 27°C surface temperature limit to protect the laminate.
The laminate plank does not bond to the heating layer. It floats above it on a thin underlay, free to expand and contract with temperature swings. The heating element sits below that underlay, embedded either into a screed (hydronic) or fixed to insulation board (electric). The thermostat reads the floor surface temperature through a probe sensor and shuts the system off before the laminate reaches damaging heat levels.
This stack — subfloor, insulation board, heating element, underlay, laminate — is the only configuration that delivers efficient heat transfer without voiding the laminate manufacturer’s warranty.
Which Type of Underfloor Heating Works Best With Laminate?
Electric underfloor heating works best with laminate in retrofit and single-room projects, while hydronic underfloor heating works best with laminate in new builds and whole-home installations. Electric mats install in hours and heat up in 30 to 60 minutes. Hydronic systems require a boiler or heat pump, take 2 to 3 hours to reach output temperature, but cost less to run long-term.
Electric (Dry) Underfloor Heating
Electric underfloor heating uses resistive heating cables or pre-spaced heating mats that convert electrical current into radiant heat. The cables sit on top of the insulation board and beneath a heating-grade underlay. A wall thermostat with a floor probe sensor controls the surface temperature.
The system has four advantages for laminate retrofits: low installation profile (typically 3–5 mm of added height), fast response time, zoned room-by-room control, and no plumbing work. The trade-off is operating cost. In the United States, electric mats run roughly $8–$15 per square foot installed and consume more energy per delivered BTU than a heat-pump-fed hydronic loop.
Electric is the practical choice for a kitchen, bathroom, bedroom, or single living area where the heated zone is under 200 square feet and the existing heating system stays in place.
Hydronic (Wet) Underfloor Heating
Hydronic underfloor heating circulates warm water at 35–55°C through PEX or multilayer pipes laid in loops across the subfloor. The pipes connect to a manifold, which feeds water from a boiler, gas heater, or air-source heat pump. The floor surface stays at or below 27°C because the flow temperature is regulated by a blending valve.
The system suits primary heating because it produces high BTU output across large areas at a low energy cost. Installation cost runs $7–$20 per square foot, and the floor build-up is taller than electric — usually 50–75 mm including screed. Hydronic is the standard for new construction, slab-on-grade pours, and renovations where the floor height can be raised.
Decision Rule: Electric vs. Hydronic Under Laminate
Choose electric if the project is one room, a retrofit, or a slab where height cannot be raised. Choose hydronic if the project is multiple rooms, new construction, or a primary heat source replacing forced-air. Both systems are compatible with laminate when the 27°C surface limit is respected and the underlay tog rating stays under 0.15 m²K/W.
Is Laminate Flooring Compatible With Underfloor Heating?
Laminate flooring is compatible with underfloor heating provided the surface temperature stays at or below 27°C, the laminate is rated by the manufacturer for radiant heat, and the underlay has a thermal resistance below 0.15 m²K/W. Laminate’s composite HDF core resists warping better than solid wood, but it still expands when heated and contracts when cooled.
How Laminate Reacts to Radiant Heat
Laminate is a four-layer floating floor — wear layer, decorative print layer, HDF core, and balancing back layer. The HDF core expands and contracts with temperature changes, and the back layer resists moisture migration. Heat affects laminate flooring in three measurable ways: the planks expand laterally, the joint locks experience stress, and the surface coating can discolor if held above 27°C for extended periods.
The composite core is more dimensionally stable than solid wood, which is why screeders prefer laminate over hardwood for hydronic UFH applications. Stability does not eliminate movement — it controls it. Laminate expansion under heat is the reason every UFH-rated install requires a 10–15 mm perimeter expansion gap.
Surface Temperature Limit
The maximum permissible contact temperature for laminate is 27°C. Above this limit, the planks risk warping, joint separation, and adhesive failure inside the click-lock profile. Quick-Step, Pergo, and most major laminate manufacturers print this 27°C cap directly on their UFH-compatibility datasheets.
The thermostat must regulate floor temperature, not air temperature. The floor probe sensor sits between two heating cables, no more than 30 mm from one cable, with no overlap. This sensor placement is what enforces the 27°C limit in real time.
Underlay Thermal Resistance
The underlay tog rating decides whether your UFH system feels warm or wastes energy heating the subfloor. The total thermal resistance of underlay plus laminate must stay below 0.15 m²K/W. Heating-rated underlays typically register 0.3 tog or less and include a vapor control layer to block moisture from rising through a concrete subfloor.
Standard PU foam underlay is not compatible with UFH. It traps heat under the laminate and degrades over months of warm-cool cycling. Heating-grade laminate underlay is a thin polyethylene or specialized fiber product engineered for radiant transfer.
Laminate Thickness for Underfloor Heating
The optimal laminate thickness for underfloor heating is 8–12 mm. Thinner planks (6 mm) feel hollow and transmit foot impact noise. Thicker planks (above 12 mm) act as a thermal blanket and reduce heat output by up to 25%. 10 mm laminate is the practical sweet spot for both heat conduction and underfoot solidity.
How Do You Prepare the Subfloor for Underfloor Heating Under Laminate?
Subfloor preparation for underfloor heating under laminate requires a clean, dry, level surface, a moisture reading below 10% on wood or 75% RH on concrete, and a layer of UFH-rated insulation board fixed beneath the heating element. Any uneven spot above 3 mm over a 2-meter span must be corrected with self-leveling compound before installation begins.
Subfloor Inspection
The subfloor is the foundation of the entire heating stack. Check three conditions in order: structural soundness, levelness, and moisture content. Concrete slabs need a damp-proof membrane test or a calcium chloride moisture reading. Wood subfloors need every board screwed down — squeaks become amplified once a heating layer goes on top.
Insulation Board Placement
Insulation boards push heat upward into the room instead of letting it sink into the slab below. Without them, an electric system loses 30–40% of its output to the subfloor and a hydronic system burns extra fuel to compensate. UFH insulation boards are typically 6 mm polystyrene or XPS panels, glued or screwed to the subfloor with taped joints.
Laminate Acclimation Period
Laminate planks must acclimate in the installation room for at least 48 hours before installation. The unopened packs sit in the space where they will be laid, allowing the HDF core to equalize with the room’s temperature and humidity. Skipping acclimation is the single most common cause of post-install buckling over UFH.
Tools Checklist
The required tools for the job are a multimeter (electric systems) or pressure gauge (hydronic), a moisture meter, a roller or trowel for insulation adhesive, a laminate saw or cutter, a tape measure, 10 mm spacers, and a tapping block. A digital thermostat with a floor probe sensor is mandatory — analog thermostats that read air temperature only are not compatible with laminate-over-UFH installations.
How Do You Install Electric Underfloor Heating Under Laminate?
Electric underfloor heating is installed under laminate in seven sequential steps: plan the layout, lay insulation boards, roll out heating mats, place the floor sensor, test resistance with a multimeter, fit a low-tog underlay, and install the floating laminate with a 10 mm expansion gap. The system stays off for 48 hours after installation, then ramps up at 5°C per day.
Step 1: Plan the Heating Layout
Sketch the room and mark fixed furniture, kitchen islands, bathtubs, and any built-ins. Heating mats never run under permanent fixtures because trapped heat causes hotspots and premature cable failure. Allow a 100 mm unheated border around the perimeter of the heated zone, and start the layout as close to the thermostat location as possible to minimize cold-lead routing.
Step 2: Fix the Insulation Boards
Adhere the insulation boards to the subfloor with the manufacturer’s recommended adhesive, butting joints tightly and taping seams. The board surface must be flat — any bump telegraphs through to the laminate above. Once the boards are down, sweep the surface clean. Dust under heating mats reduces thermal contact.
Step 3: Roll Out the Heating Mats or Cables
Unroll the heating mat following the layout sketch. Cut only the mesh backing to turn corners, never the heating cable itself. For loose-cable systems, fix the cable in a serpentine pattern with 75–100 mm spacing (typically 3 inches). Cables must not cross or overlap — a single touch point becomes a hotspot that burns through the underlay and damages the laminate above.
Step 4: Install the Floor Sensor and Thermostat
The floor sensor probe sits between two adjacent heating cables, recessed into a 6×6 mm channel cut into the insulation board. The probe routes back to the thermostat location through a conduit. Wire the thermostat per the manufacturer’s diagram and have a licensed electrician make the final mains connection. Most jurisdictions require GFCI protection on UFH circuits.
Step 5: Resistance Test the System
Use a multimeter to measure the resistance of the heating element across the cold leads. Compare the reading to the manufacturer’s tolerance band on the product label — typically ±10%. Record the value on the warranty card. If the reading is out of range, the cable is damaged and must be located and repaired before any underlay or laminate goes down.
Step 6: Lay the Underlay
Roll out a UFH-rated underlay over the heating mats with a thermal resistance under 0.15 m²K/W. Tape the seams, do not overlap them. The underlay protects the heating cables from the click-lock edges of the laminate and provides a uniform surface for the floating floor.
Step 7: Install the Laminate Planks
Lay the laminate using the standard floating click-lock method, starting along the longest wall. Maintain a 10–15 mm expansion gap at every wall, doorway, and pipe penetration. Stagger end joints by at least 300 mm. Hide the expansion gap behind baseboards or quarter-round trim — never caulk it shut, as that defeats its purpose.
Step 8: Commission the System Gradually
Wait 48 hours after the last plank is laid before powering the system. Set the thermostat to 18°C on day one. Increase the setpoint by no more than 5°C per day until the operating temperature is reached. This commissioning ramp lets the laminate equalize without sudden expansion stress.
How Do You Install Hydronic Underfloor Heating Under Laminate?
Hydronic underfloor heating is installed under laminate in eight steps: design the loop layout, insulate the subfloor, fix the PEX pipe to the boards, connect the manifold, pressure-test the circuits, pour or fit the screed, install the UFH-rated underlay, and lay the floating laminate. Flow temperature is capped at 35–40°C and the floor surface at 27°C.
Step 1: Design the Loop Layout
Map each circuit to the manifold with a maximum loop length of 100 meters per circuit at 16 mm pipe diameter. Loop spacing is typically 150–200 mm in living areas and 100 mm in cold-edge zones near exterior walls. A licensed heating engineer should size the system based on heat-loss calculations for the room.
Step 2: Insulate and Set the Pipe
Lay insulation boards across the subfloor, then fix the PEX pipe with clip rails, staples, or a track system. Avoid tight bends — the minimum bend radius is typically 8× the pipe diameter. Pressure-test each circuit to 6 bar before any screed goes down and hold the pressure throughout the screed pour to confirm no leaks develop under load.
Step 3: Pour the Liquid Screed
Liquid screed is preferred over traditional sand-cement screed for laminate-over-UFH installations. It self-levels, fills voids around the pipework, and transfers heat efficiently to the surface above. Allow the screed to cure for 7–28 days depending on the product, then run the system for two weeks to drive residual moisture out before the laminate goes on.
Step 4: Verify Screed Moisture and Fit the Underlay
Test the cured screed with a hygrometer — moisture content must read below 75% RH for a concrete subfloor or below 1.8% CM for an anhydrite screed. Then roll out the UFH-rated underlay, again keeping the total thermal resistance below 0.15 m²K/W.

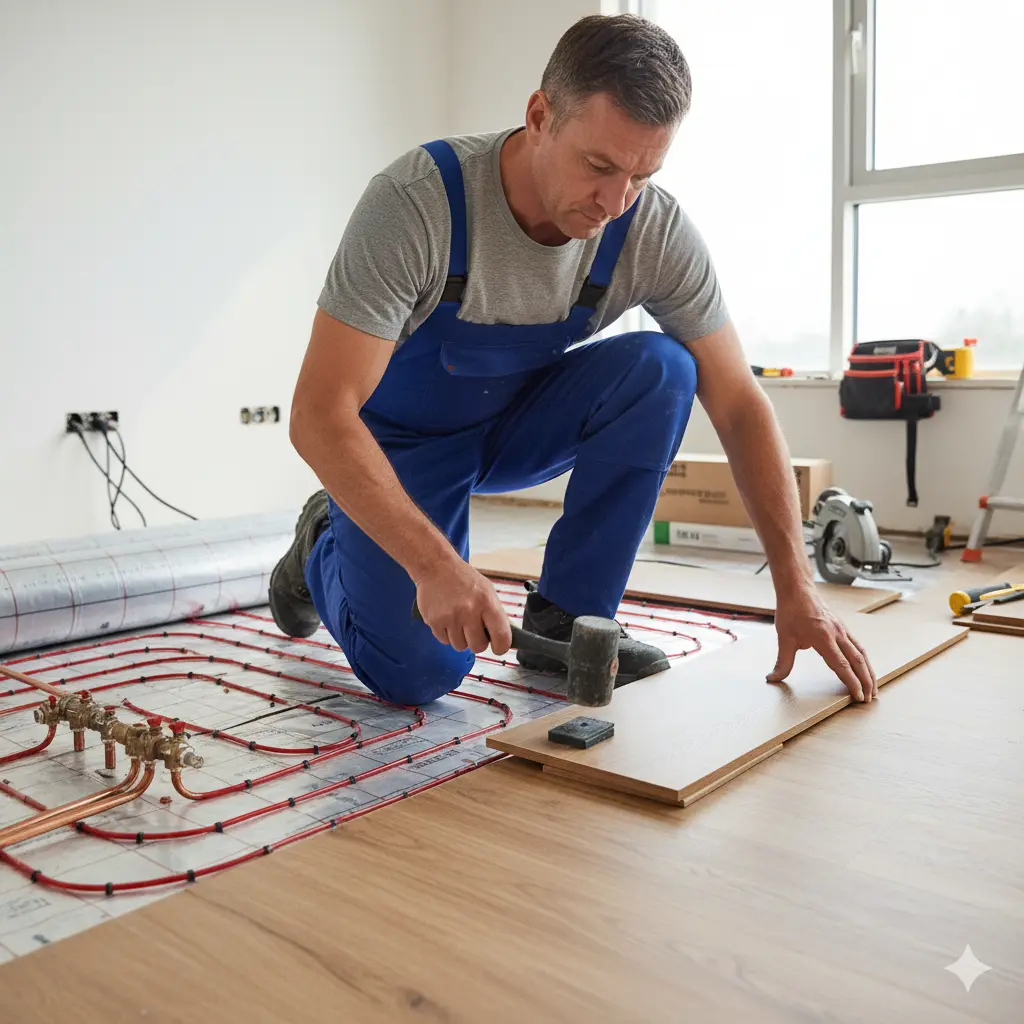

Step 5: Lay the Laminate Planks
Install the laminate in the standard floating method with a 10–15 mm expansion gap. The hydronic flow temperature should not exceed 40°C during normal operation, controlled by a blending valve at the manifold. Increase water temperature by 5°C per day during commissioning, the same ramp used for electric systems.
What Mistakes Should You Avoid When Installing Underfloor Heating Under Laminate?
The eight critical mistakes to avoid when installing underfloor heating under laminate are: skipping the insulation board, using non-UFH underlay, exceeding 27°C surface temperature, omitting the expansion gap, powering the system within 48 hours of install, ramping temperature faster than 5°C per day, overlapping heating cables, and skipping the pre-cover resistance or pressure test.
Mistake 1: Omitting the Insulation Layer
Without insulation boards, 30–40% of the heat output sinks into the subfloor. The room takes longer to warm, the energy bill rises, and the system runs at a higher duty cycle than designed. Always fit UFH-rated insulation boards before the heating element goes down.
Mistake 2: Using the Wrong Underlay
Standard PU foam underlay traps heat, degrades under cycling temperatures, and pushes the floor temperature above the laminate’s 27°C limit. Use only underlay rated by the manufacturer for underfloor heating with a tog value below 0.4 and a thermal resistance under 0.15 m²K/W.
Mistake 3: Powering the System Too Early
Switching on the heat before the laminate has had 48 hours to settle causes accelerated expansion. The planks push against the wall, the click-lock joints separate, and gaps appear in the field. The fix is to relay the floor — there is no shortcut.
Mistake 4: Cranking the Temperature Too Fast
The commissioning ramp is 5°C per day, not 5°C per hour. Sudden heat changes stress the HDF core unevenly, causing micro-cracks in the wear layer and delamination at the joints. Slow heating during the first week is the difference between a 20-year floor and a 2-year repair.
Mistake 5: Ignoring Expansion Gaps
The 10–15 mm perimeter gap is the only safety valve a floating laminate floor has against thermal expansion. Without it, the floor buckles into a peak somewhere in the field — usually right where the daily foot traffic is heaviest. Spacers are removed only after the last plank is locked.
Mistake 6: Crossing or Overlapping Heating Cables
Cable overlaps create localized hotspots that exceed the 27°C limit even when the room thermostat reads normal. The cable insulation degrades, the laminate above discolors, and in extreme cases the circuit fails. Spacing rules are not suggestions — they are the design tolerance of the system.
Mistake 7: Skipping the Pre-Cover Test
A resistance check on electric systems and a pressure test on hydronic systems take ten minutes. Diagnosing a fault after the laminate is laid takes a full day of demolition. Test before you cover, every time.
Mistake 8: Ignoring the Manufacturer’s Datasheet
Each laminate brand publishes a UFH compatibility specification: maximum surface temperature, approved underlays, minimum acclimation time, and approved installation methods. Quick-Step caps thermal resistance at 0.15 m²K/W, Pergo recommends Silent Walk underlay, and most brands void the warranty if the floor probe sensor is omitted. Reading the datasheet is a five-minute task that protects a multi-thousand-dollar floor.
Should You Install Underfloor Heating Under Laminate Yourself or Hire a Professional?
You should install electric underfloor heating under laminate yourself only if you are experienced with floating-floor installation and a licensed electrician handles the mains connection. Hydronic underfloor heating requires a professional plumber and heating engineer because of manifold sizing, pressure testing, and integration with the boiler or heat pump.
Electric mat systems are designed for DIY installation up to the cold-lead connection point. Most homeowners can prepare the subfloor, lay insulation, roll out mats, place the sensor, and install the laminate using a standard floating method. The mains hookup is not negotiable — it must be wired by a licensed electrician under local code, with GFCI protection.
Hydronic systems involve boiler integration, manifold balancing, and circuit hydraulics that fall outside DIY scope. A botched manifold causes uneven floor temperatures across the room and a leak inside a screed pour means jackhammering the floor to find it. For hydronic projects in San Diego, Flooring Contractors San Diego coordinates the heating engineer, the screed crew, and the laminate install as one project, which removes the handoff risk between trades.
Frequently Asked Questions
What is the maximum temperature for laminate over underfloor heating?
The maximum surface temperature for laminate over underfloor heating is 27°C. Most manufacturers including Quick-Step, Pergo, and Egger print this limit on their compatibility datasheets. The thermostat must be set to regulate floor temperature, not air temperature, and a floor probe sensor must be installed between two heating cables.
Do you need underlay for laminate over underfloor heating?
Yes, laminate over underfloor heating requires a UFH-rated underlay with a thermal resistance below 0.15 m²K/W and a tog value below 0.4. The underlay protects the heating cables from the click-lock edges, smooths minor subfloor irregularities, and acts as a vapor barrier on concrete subfloors. Standard PU foam underlay is not compatible with UFH.
How long do you wait before turning on underfloor heating after laying laminate?
You wait at least 48 hours after laying laminate before turning on underfloor heating, then ramp the temperature up by no more than 5°C per day until the operating setpoint is reached. The 48-hour pause lets the planks settle on the underlay, and the gradual ramp prevents sudden expansion stress on the click-lock joints.
What thickness of laminate is best for underfloor heating?
The best laminate thickness for underfloor heating is 8–12 mm, with 10 mm being the most common specification. Thinner planks feel hollow and transmit impact noise, while planks above 12 mm act as thermal insulation and reduce heat output by up to 25%. The laminate manufacturer’s datasheet confirms the approved thickness for radiant heat use.
Can hydronic underfloor heating damage laminate?
Hydronic underfloor heating does not damage laminate when the flow temperature stays below 40°C, the surface temperature stays below 27°C, and the screed has fully cured with a moisture content below 75% RH before the laminate is laid. A blending valve at the manifold regulates the flow temperature to keep the system within these limits.
